Lotoo PAW D3
D/A and D/D converter
This is an extremely compact yet sonically powerful solution for digital-to-analog conversion. But the Lotoo D3 is more than just a DAC – it's also a wireless transmitter and receiver, enabling wireless communication between Lotoo devices, such as from a PAW D3 to another PAW D3 or a GT2 portable music player. The wireless communication is based on Lotoo’s proprietary LTTP – Lotoo Teleport Protocol – which allows for stable, lossless transmission of audio signals.

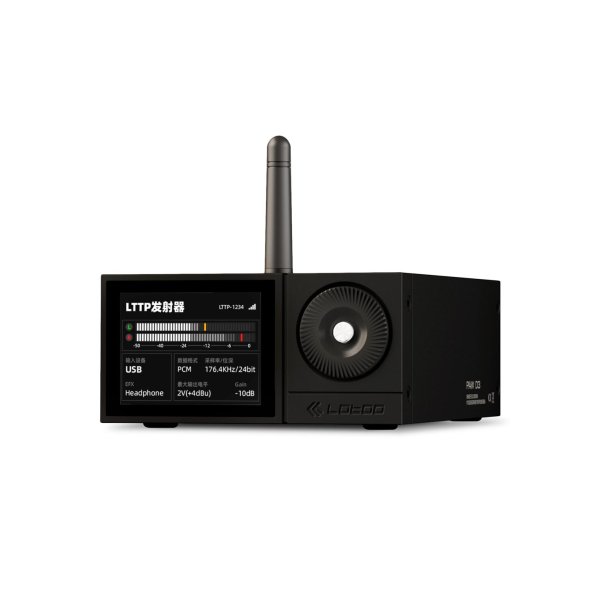

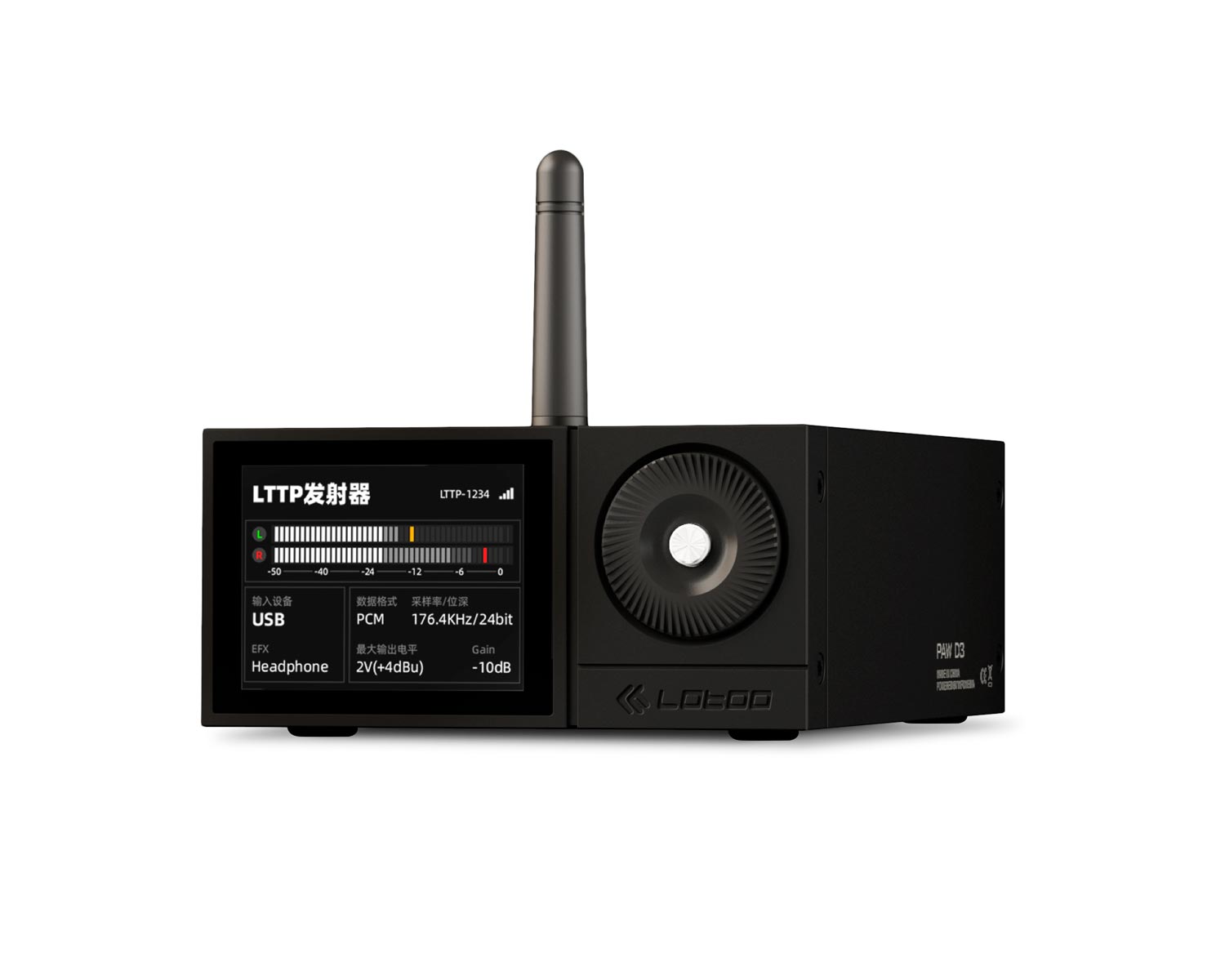

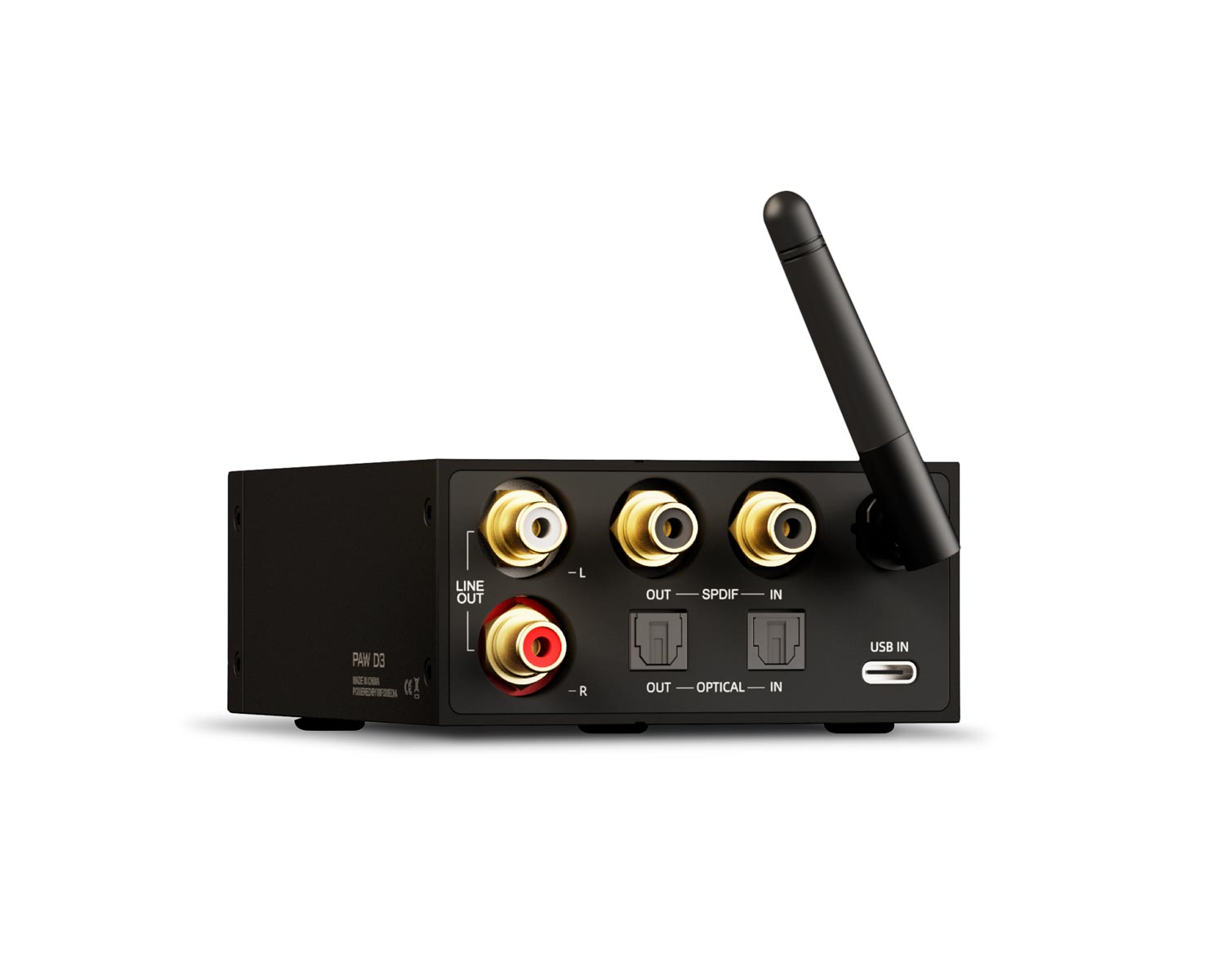

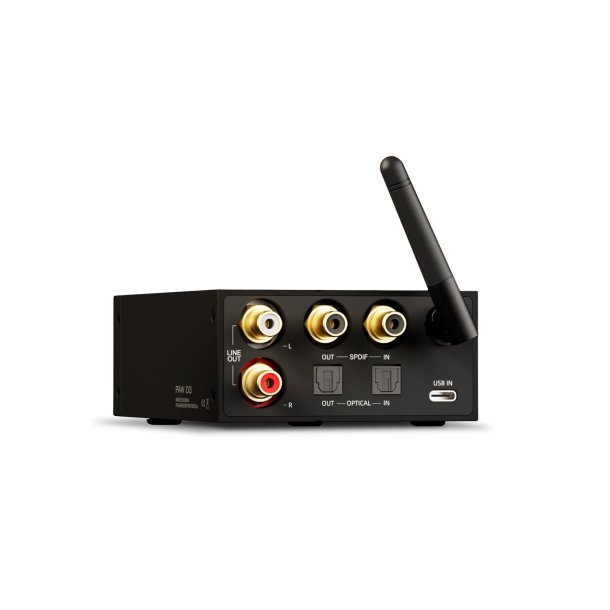

Digital signals can be fed into the Lotoo D3 via coaxial S/PDIF, optical TosLink, or USB-C. The signal can then be output either in analog form via a pair of RCA outputs or digitally via S/PDIF or TosLink. The digital-to-analog conversion is handled by an AK4493EQ chipset from AKM. As we’ve come to expect from other Lotoo products, there is a wide range of options for sound customization through various filters and DSPs. For example, you can choose presets like 'Movie', 'Game', and 'Vinyl LP' if you want to add a bit of flavor to your listening experience. The DSP processing is handled by an ADI Blackfin chip. The front of the Lotoo PAW D3 features an LCD screen that displays a wealth of information about the incoming signal and the active signal processing.
| Measurements | 11 x 4,2 x 8,8 cm |
| Weight (net) | 333 grams |
| Input, optical (TosLink) | 1 |
| Input, coaxial (S/Pdif) | 1 |
| Input, USB | 1 |
| Output, optical (TosLink) | 1 |
| Output, coaxial (S/Pdif) | 1 |
| Output, Stereo RCA | 1 |
| Supported sample rates, kHz | 44.1, 48, 88.2, 96, 176.4, 192 |
| Supported bit depth | 16 bit, 24 bit |
| Audio chipset (DAC) | AKM AK4493EQ |
| In the box | Users guide |
| Other included accessories | USB cable |
| User manual available in | English |
| Made in | China |
