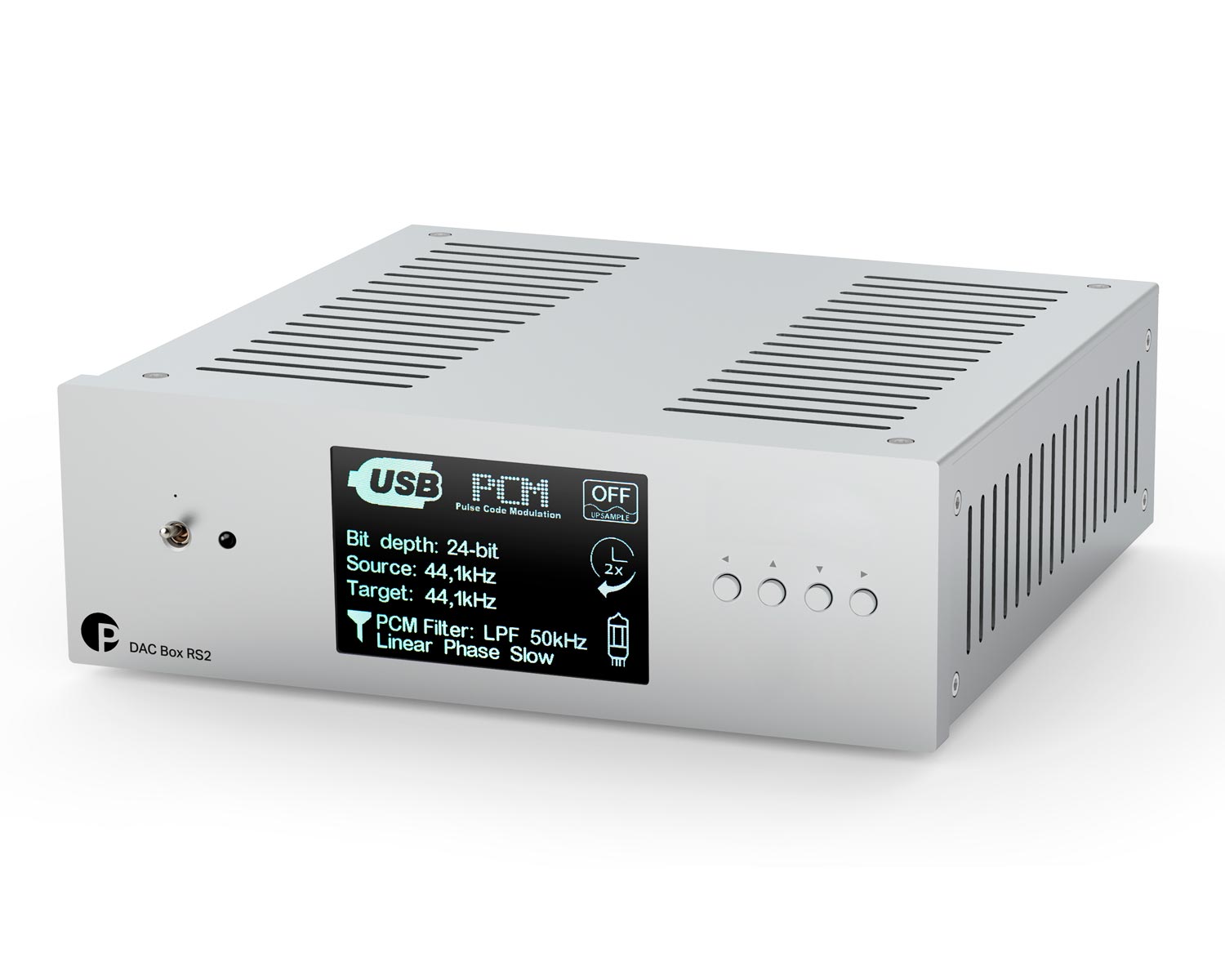

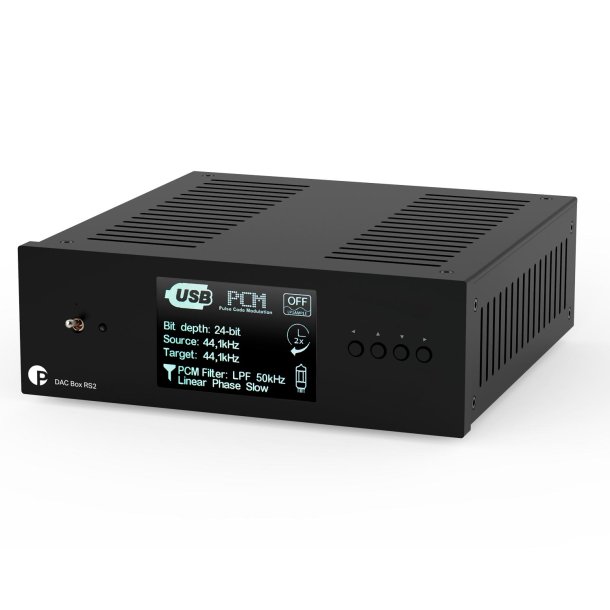

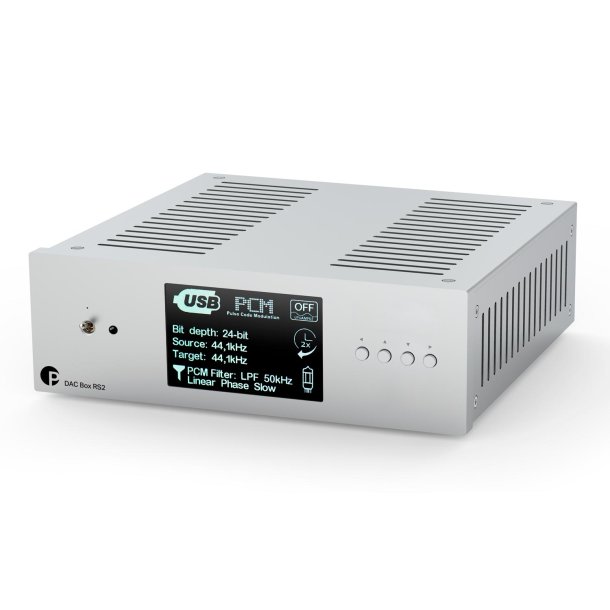

Pro-Ject DAC Box RS2
High-end digital-to-analogue converter
The DAC Box RS2 is based on Pro-Ject's incredibly successful Pre Box RS2 Digital but takes away the analogue pre-amp section, to reduce the unit to a standalone DAC with fixed output. It uses the same excellent sounding DAC chips that were first used in it‘s little brother, the Pre Box S2 Digital. Based on the same core-design principles, the feature set is extended and driven to new heights. The result is a fantastic sounding and very versitile box.
The perfect partner for anyone looking for a modern DAC with a plethora of digital inputs and a fully balanced circuit board design. The DAC Box RS2 is a DAC that uses a dual-mono configuration of the highest-class D/A converters from ESS Sabre. ESS9038Q2M chips provide the highest sound quality in price-affordable, high-end circuits. Unlike most of DAC´s in this price range, the DAC Box RS2 includes dual DACs and separate signal paths for the left and right channels.
| Measurements | B: 20,6 x H: 7,2 x D: 22,2 cm |
| Weight (net) | 1.7 kg |

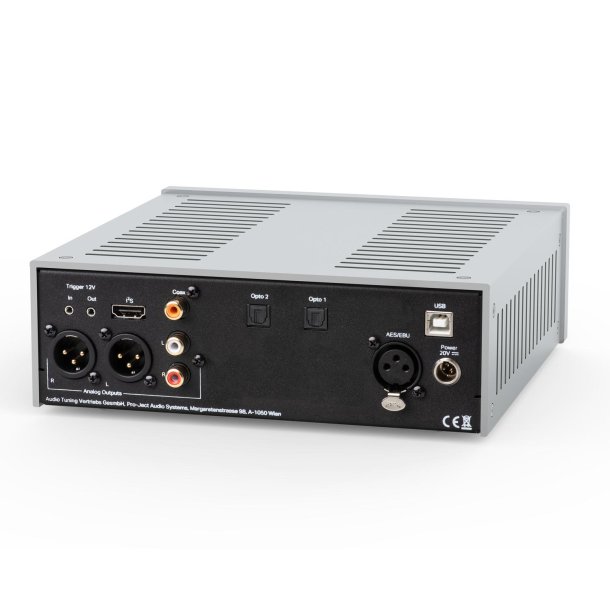

| Digital input(s) | Yes |
| Input, optical (TosLink) | 2 |
| Input, coaxial (S/Pdif) | 1 |
| Input, I2S | 1 |
| Input, USB | 1 |
| Input, AES/EBU | 1 |
| Input, Stereo RCA | 1 |
| Input, Stereo XLR | 1 |
| Output, Stereo RCA | 1 |
| Output, Stereo XLR | 1 |
| 12v. trigger input | Yes |
| 12v. trigger output | Yes |
| Pre-out (stereo) | No |
| THD+N | < 0.008% solid state/0.001% tube @ 2V RMS, 1 kHz |
| Audio decoding | DSD64 / 2.8 MHz, DSD128 / 5.6 MHz, DSD256 / 11.2 MHz, DSD512 / 22.5 MHz, DXD, MQA decoder |
| Supported sample rates, kHz | 44.1, 48, 88.2, 96, 176.4, 192, 352, 384, 768 |
| Supported bit depth | 16 bit, 24 bit, 32 bit |
| Roon Tested DAC | Yes |
| Audio chipset (DAC) | 2 x ESS9038Q2M |
| Upsampling | Yes |
| In the box | Power supply, Remote control, Users guide |
| User manual available in | English |
| Power consumption when standby | <0,5W in standby |
| Power consumption | max. 1,2A DC |
| Made in | Europe / EU |
