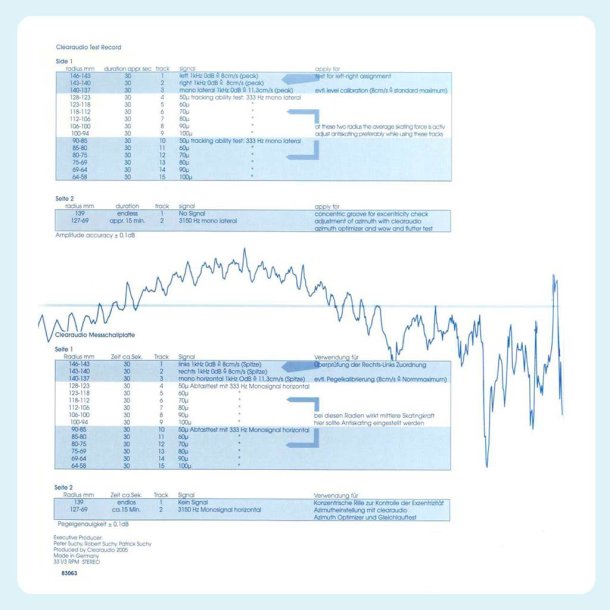

Clearaudio Trackability Test Record
Hjælpeværktøj til justering af pladespiller
Vinylplade til optimering af tonearm og pickup. Et godt værktøj hvis du vil teste hvor god din pladespiller faktisk er til at levere hvad der er skåret i skiven.
Side A:
1. Test for Left-Right Assignment - Left 1kHz odB 8cm/s (peak)
2. Test for Left-Right Assignment - Right 1kHz odB 8cm/s (peak)
3. Evtl. Level Calibration - Mono Lateral 1kHz odB 11.3cm/s (peak)
4. Tracking Ability Test (Outer Groove): 333 Hz Mono Lateral - 50 microns
5. Tracking Ability Test (Outer Groove): 333 Hz Mono Lateral - 60 microns
6. Tracking Ability Test (Outer Groove): 333 Hz Mono Lateral - 70 microns
7. Tracking Ability Test (Outer Groove): 333 Hz Mono Lateral - 80 microns
8. Tracking Ability Test (Outer Groove): 333 Hz Mono Lateral - 90 microns
9. Tracking Ability Test (Outer Groove): 333 Hz Mono Lateral - 100 microns
10. Tracking Ability Test (Inner Groove): 333 Hz Mono Lateral - 50 microns
11. Tracking Ability Test (Inner Groove): 333 Hz Mono Lateral - 60 microns
12. Tracking Ability Test (Inner Groove): 333 Hz Mono Lateral - 70 microns
13. Tracking Ability Test (Inner Groove): 333 Hz Mono Lateral - 80 microns
14. Tracking Ability Test (Inner Groove): 333 Hz Mono Lateral - 90 microns
15. Tracking Ability Test (Inner Groove): 333 Hz Mono Lateral - 100 microns
Side B:
1. Concentric Groove for Excentricity Check - Locked Groove
2. Adjustment of Azimuth with Clearaudio Azimuth Optimizer and Wow and Flutter Test - 15 min.
